About the iDimension Plus
Seeing as the iDimension plus has been granted NMI Approval for trade applications, this device ensures precise dimensional weight calculations, which are crucial for avoiding revenue loss with parcel and postal carriers.
The iDimension Plus is ready to use immediately, just open, assemble, and the iDimension Plus will instantly show the dimensions.
NMI Trade Approved Parcel Dimensioner
The Rice Lake iDimension Plus has received Australian trade approval for Legal for Trade applications. This approval is for parcels in 0.5 or 1 cm increments, providing precise dimensional weight calculations required by parcel and postal carriers, thereby eliminating potential revenue loss.
In addition, the iDimension Plus offers configurable modes to measure flats, polybags, tubes, and irregularly shaped packages in 1 or 2 cm increments for non-approved applications, enhancing its versatility and usability in various shipping and logistics scenarios.
Who should choose the iDimension Plus?
Outbound Boxed
& Packed Orders
Additionally, it automatically calculates parcel dimensions in just 0.2 seconds with an accuracy of 0.2 inches, minimising human error. Even more impressively, irregularly shaped packages such as cylinders, spheres, tubes, polybags, and uneven shapes are measured within a tolerance of +/- 1.27 cm.
Furthermore, being NMI certified for measuring parcels in 0.5 or 1 cm increments, the iDimension Plus employs multiple patented 3D-imaging technologies and advanced algorithms to streamline static outbound shipments.
Moreover, its unique flat-detection technology handles objects under 3 cm, while the overhead imaging aids in claim disputes over damaged packages. Finally, the color touchscreen display offers instant feedback, live images, measurements, weight, and operator functions for efficient daily use.
Inbound SKU Master Data Capture
The iDimension® Plus is an ideal solution for Inbound SKU Master Data Capture, seamlessly integrating with the Dini Argeo DFWL and 3590 Touch Screen weight indicator series to combine weight and volume data. This versatile station can be outfitted with a printer, labeller, and bar code reader, enhancing its functionality.
When it is equipped with a camera, the iDimension® Plus XL captures aerial images of measured objects, ensuring complete traceability—a critical feature for resolving disputes over damaged parcels. This comprehensive data capture and documentation capability streamline operations and also maintains accuracy in inventory management.
Rice Lake iDimension Plus Specifications
Power Requirements:
110 to 240 VAC US power cord (included)
Communication Ports:
(1) USB A
(1) 10/100/1000 Base-T Ethernet
Display:
178 mm touchscreen monitor
Accuracy:
Rectangular box-shaped (parallelepiped, cuboidal) objects
Maximum Dimensions (L × W × H): 1200 × 800 × 800 mm
Minimum Dimensions (L × W × H): 140 × 140 × 50 mm
Measurement Scale Interval (d): 5 mm
Software Integration:
Rectangular box-shaped (parallelepiped, cuboidal) objects
Maximum Dimensions (L × W × H): 1200 × 800 × 800 mm
Minimum Dimensions (L × W × H): 140 × 140 × 50 mm
Measurement Scale Interval (d): 5 mm
Temperature Range:
Rectangular box-shaped (parallelepiped, cuboidal) objects
Maximum Dimensions (L × W × H): 1200 × 800 × 800 mm
Minimum Dimensions (L × W × H): 140 × 140 × 50 mm
Measurement Scale Interval (d): 5 mm
Humidity:
Non-condensing
Configurations
iDimension Plus
The Rice Lake iDimension Plus is designed for quick and easy assembly, taking 30 minutes or less. Specifically, it displays dimensions in just 0.2 seconds without requiring any special package placement. As well as this the iDimension Plus includes a touchscreen monitor and can measure opaque packaging with Legal for Trade approvals.
Additionally, it features a high-resolution color camera, offering images at 2880 x 2160 pixels, and there is also an iDimension Plus 4K option available for even higher resolution images.
iDimension Plus XL
Specifically, it can be mounted over a conveyor, table, or scale using a pole, ceiling mount, or support beam. This model retains all the excellent features of the iDimension Plus, with the added advantage of positioning the scanning head at 60 cm (1.5 meters) and 80 cm (2 meters). Moreover, the iDimension Plus XL also offers an optional powered USB hub to connect multiple peripherals.
Additionally, an optional USB barcode scanner with keyboard wedge emulation is available. This allows for manual dimensioning and the addition of barcode text data into the web service API.

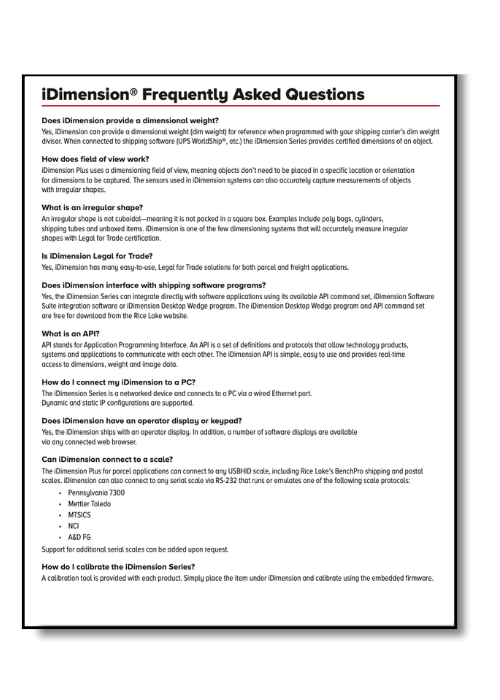

Brochures
